All-in-one Video Conferencing at the Touch of a Button
Designed to deliver video meetings with ease, Rally Bar Huddle is quick to set up in person or remotely, simple to manage, and easy to integrate with your existing video conferencing solutions through CollabOS.
Beyond simple uploading and syncing between devices apps and desktop widgets, true collaboration is offered by Dropbox Business, enabling people to work in real time with others.
Key Features

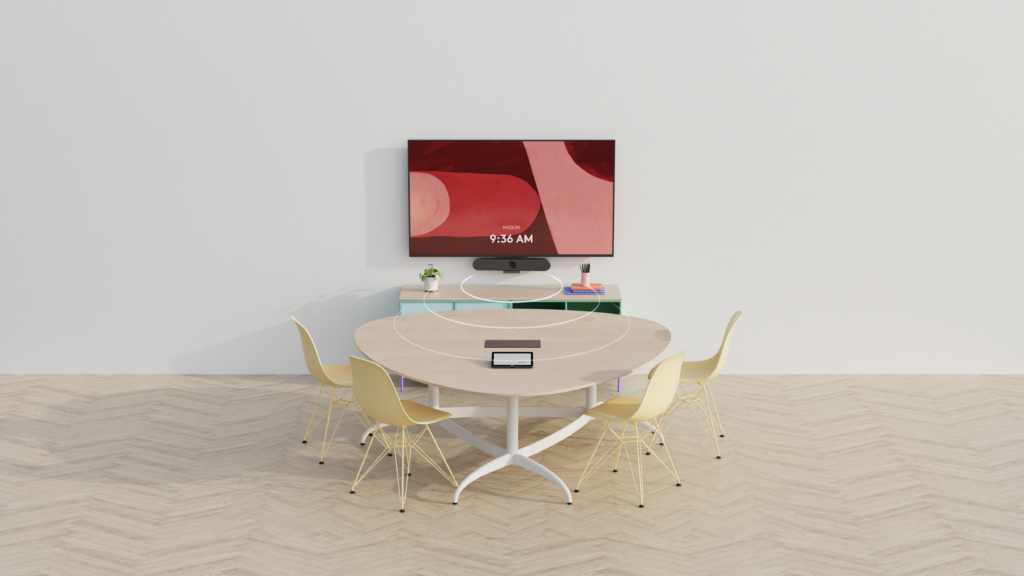

Everyone is seen and heard clearly
Ensure everyone can be seen and heard clearly during hybrid meetings. AI video intelligence, advanced sound pickup, noise suppression, and ongoing software improvements provide a clear and natural meeting experience for remote workers.
Works with your Platform of Choice
Leverage the video conferencing platforms and features you already use. Sight integrates with leading video platforms like Microsoft Teams, Zoom, and Google Meet* to make hybrid meetings more equitable and inclusive.
Quick to setup, easy to manage
Designed to deliver video meetings with ease, Rally Bar Huddle is quick to set up, simple to manage, and easy to integrate with Tap IP through CollabOS. Plus, use the included Multi Mount to mount Rally Bar Huddle one of three ways; on the wall, on the table, or above the display.
3 Ways to Deploy
Use Rally Bar Huddle as a meeting room appliance, in USB mode connected to a meeting room PC, or connect via laptop.
PC
Appliance
BYOD
Technical Specifications
General Specifications
- Built-in Components: 6 DMIC microphone array, digital PTZ camera, 1 full range ported speaker, cable management & retention system, Multi Mount, integrated motorized privacy shutter, Logitech Collab OS platform
- Enclosure: All-in-one enclosure with field replaceable front cover
- Device Management: Logitech Sync
- Displays Supported: 1 (2nd display support is coming soon)
- Display Resolution: 1080p
- Network Protocol Support: IPv4, IPv6
- Proxy Support: IP based Proxy, FQDN based Proxy, Proxy using PAC file
Camera
- Digital Pan: ±48° at 4x zoom
- Digital Tilt: ±32° at 4x zoom
- Zoom: 4X HD digital zoom
- Diagonal Field of View: 120°
- Horizontal Field of View: 113°
- Vertical Field of View: 80°
- Resolution: 4K
Speakers
- Driver: 55 mm with bass reflex enclosure and patented suspension design
- Sensitivity: 83 dB SPL @1W +/-2dB @ 1 meter
- Rated Power: 8W
- THD at 1W, 1kHz: <2%
- Speaker Sampling Rate: 48KHz
- Impedance: 4 Ohms
Microphone
- Frequency Response: 90Hz – 16kHz
- Sensitivity: -36dBFS +/-1 dB @ 1Pa
- Microphone data rate output: 48 kHz
- Pickup Range: Up to 7m
- Beamforming Elements: Six omnidirectional digital MEMS microphones forming five adaptive acoustic broadside beams
- Audio processing: AEC (Acoustic Echo Cancellation), VAD (Voice Activity Detector)
- Noise suppression: AI based de-noising algorithm
Interfaces
- HDMI Out: 1
- HDMI In: 1
- USB: 1x Type A USB 3.1, 1x Type C USB 3.1
- Network: 10/100/1G Ethernet
- WiFi: 802.11a/b/g/n/ac
- Bluetooth: Bluetooth® Low Energy
Power & Cable
- Power supply: Auto-sensing
- Operating Voltage/Power: 100-240V, 19V, 2.1A
- Power Supply Dimensions: 114 mm x 47 mm x 32.3 mm
- DC Cable: 1.5 m
- AC Cable: 1 m
- HDMI 1.4 Cable: 2 m
- USB A to USB C 3.0 Cable: 2.2 m
Package Content
- Rally Bar Huddle
- Multi-Mount
- Power supply
- AC power cord
- HDMI cable
- USB cable
Warranty Information
Standard: 2-year limited hardware warranty included.
Extended: Additional one-year and three-year extended warranties available at the time of hardware purchase.
Contact your reseller for availability.
