Samsung Flip 2

Samsung Flip 2

Teamwork Simplified with Interactive E-board Display.


Introducing the new type of collaboration technology, Samsung Flip 2.

The Samsung Flip 2 borrows on the form and function of those standing paper flip charts you will recognise from countless meeting rooms, and makes it digital. It also simplifies and streamlines the kind of functionality users know from wall-mounted interactive whiteboards.



A Writing Experience just like Pen to Paper

Smooth and familiar pen-to-paper-like writing in a variety of colors, styles and widths. Up to 4 people can write simultaneously and erase drawings with a finger or palm swipe.

Quick and Efficient Editing Tool

Users can quickly and easily select, move, crop, capture, and edit any images. Each Image can also be merged to the roll with just one click of a button, allowing it to be edited or erased.

Advanced Compatibility

Open your documents with ease with a built-in document viewer and extend the information to another large digital display for bigger audiences with the wireless screen sharing functionality.

Versatile Connection Option

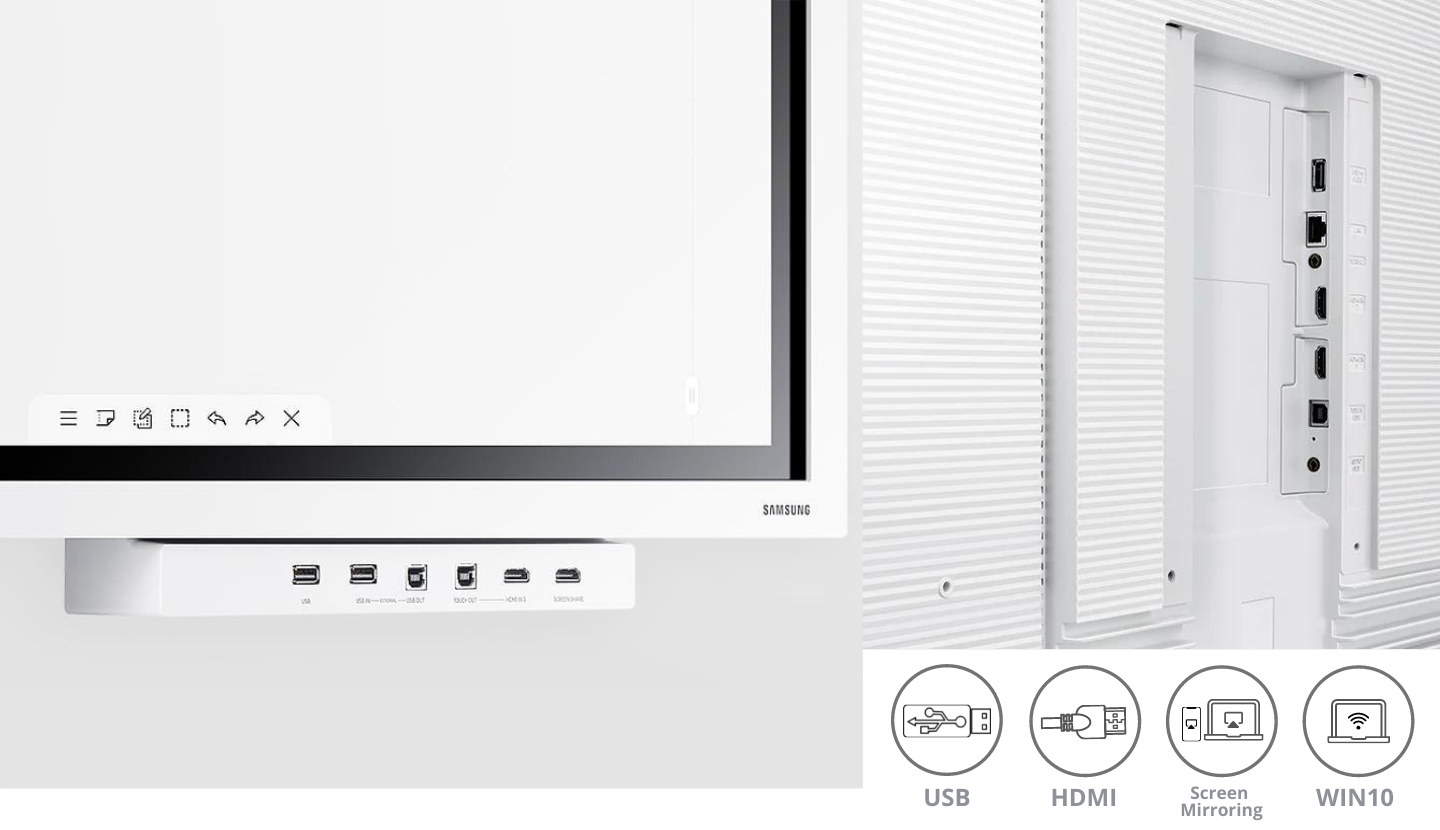

USB, HDMI, NFC and screen sharing capabilities enable optimum collaboration and provide interactive content visibility, notation and sharing.


Advanced Convenience

Samsung Flip offers a host of improved capabilities, including secure wireless connection, automatic firmware updates, LDAP synchronization, file security and remote management – ensuring a convenient and productive meeting experience.

SAMSUNG flip lineup

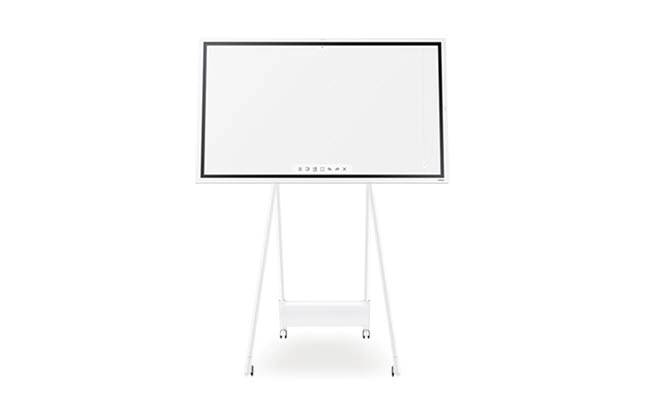

Samsung Flip2 (WM55R)

55-inch display with pivot function and optional stand compatibility

Samsung Flip2 (WM65R)

65-inch e-board with a slim design facilitated by an optional wall mount



  • Diagonal Size: 55/65″
  • Type: 60Hz New Edge
  • Resolution: 3840X2160 (Landscape)
  • Brightness: 350 (without glass), 220(with glass)
  • Contrast Ratio: 4000:1
  • Response Time: 8ms


  • Input

    • Video: x2 HDMI(Basic) x3 HDMI(With Tray)

    • USB: x1 USB(Basic) x2 USB(With Tray), x1 USB External (In/Out)

  • Output

    • Touch Out: (Basic) Touch Out 1 (USB Upstream Type), Audio Out 1 (With Tray) Touch Out 2, Audio Out 1, Screen Share(HDMI-Out) 1

    • Internal Sensor: (Basic) Acceleration sensor (With Tray) Acceleration sensor, NFC

    • External Control: Touch Input, RS232C thru stereo jack, RJ45(For MDC)


  • Speaker Type: Built in Speaker (10W X 2)


  • Type: InGlass
  • # of Drawing: Multi writing up to 4
  • Touch Pen Type: Passive Pen with Magnet
  • Object Recognition Range: 2mm/4mm/8mm/50mm, 1024 Level on Brush Mode
  • Touch Response Time: 6.7ms


  • Type: Internal
  • Power Supply: AC 100~240V 50/60Hz

Mechanical Specifications

Dimension (mm) & Weight(kg)

  • 55″
    • Set: 1297.4(W) x 768.2(H) x 59.9(D)
    • Package: 1264(W) x 915(H) x 190(D)
    • Weight: 28.2 kg
    • Package: 35.2kg
  • 65″
    • Set: 1522.4(W) x 897.6(H) x 62.9(D)
    • Package: 1691(W) x 1055(H) x 198(D)
    • Weight: 40.0 kg
    • Package: 50.6kg


  • Colour: Light Grey
  • Vesa Mount(mm): 400 x 400
  • Protection Glass: Yes
  • Stand Type: No-Gap Wall Mount
  • Rotation: Landscape only with Flip No-Gap Wallmount (Available with rotation support 3rd party accessory as sensor/portrait UX already applied on Flip)

teamwork in any space
